Casting film production line

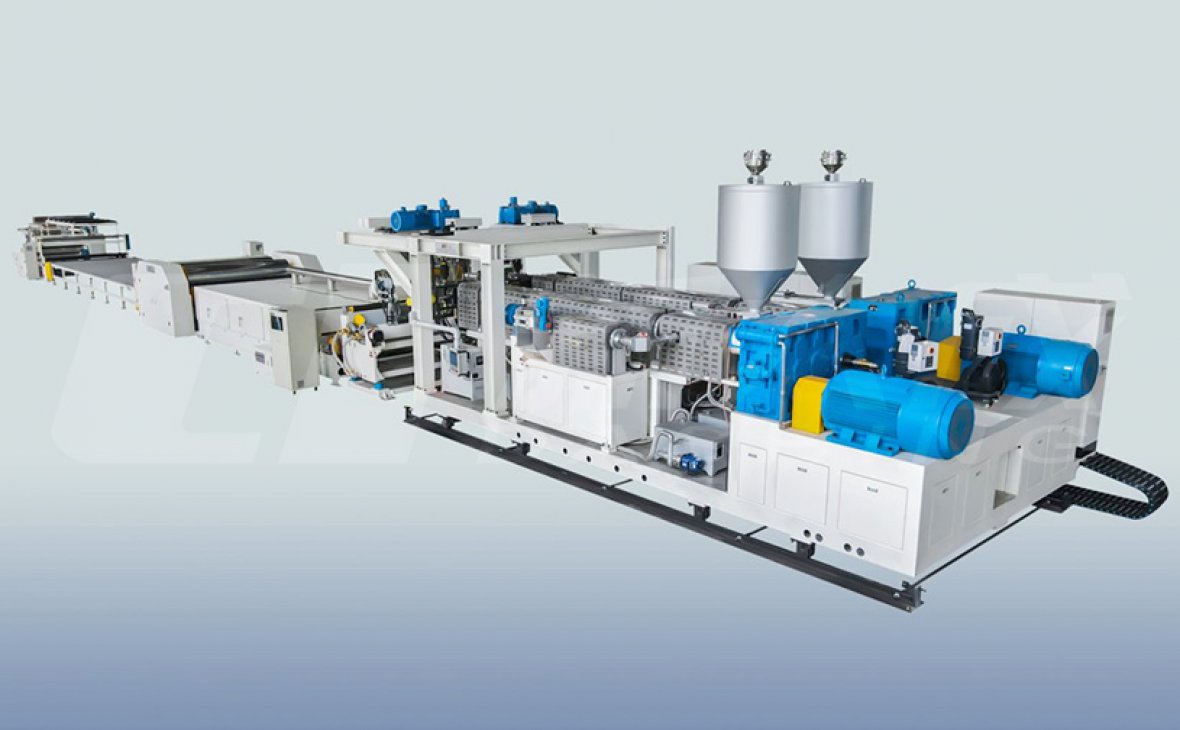

EVA/POE solar film production line
Main technical parameters £º
Type | XDC-2200 | XDC-2200 | XDC-3000 |
Extruder specification | 160 | 180 | 180+180 |
Width of product | 2200mm | 2200mm | 3000mm |
Thickness of Products | 0.02-0.1m'm | 0.02-0.1m'm | 0.02-0.1m'm |
Output | 600kg/h | 800kg/h | 1200kg/h |
Speed | 12m/min | 12m/min | 12m/min |

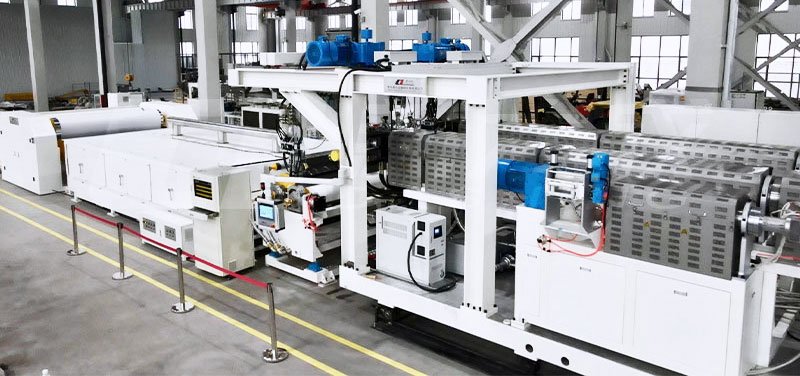

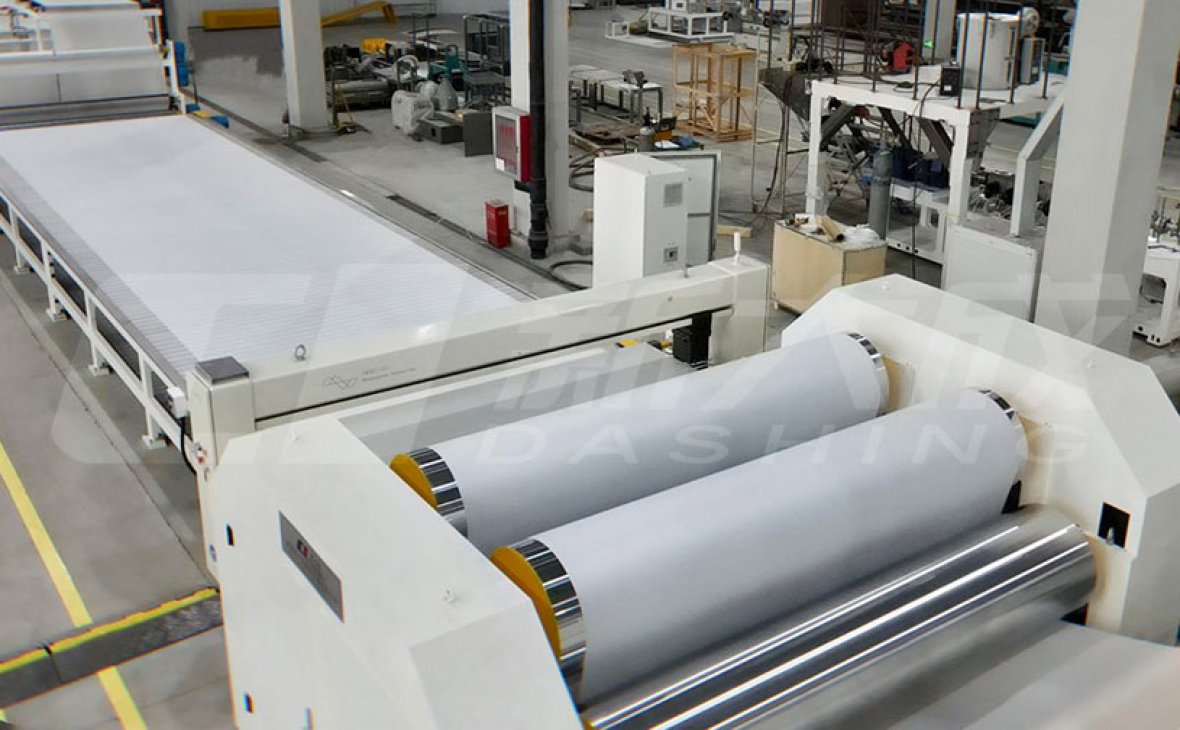

Xindahceng EVA/POE solar encapsulation film production line is specially designed for photovoltaic module encapsulation film manufacturing. The line is suitable for producing transparent EVA film, white EVA film, POE film, EPE film, and co-extruded solar encapsulation films widely used in solar panel manufacturing, photovoltaic backsheet lamination, architectural glass, and functional optical film industries.
The equipment features high automation, stable extrusion performance, low shrinkage, precise thickness control, and energy-saving operation. It is an ideal solution for solar encapsulation film manufacturers and photovoltaic material factories.
Product Features
Suitable for EVA + additives and POE + additives
High-speed stable production with low shrinkage
Intelligent automatic thickness gauge control system
Optical-grade film extrusion technology
Advanced far-infrared annealing process
Edge trim online recycling system
Stable film flatness and high light transmittance
Multiple extruder configurations available
Customized line width and surface structure
Complete turnkey engineering support
Technical Specifications
| Item | Specification |
|---|---|
| Applicable Materials | EVA + additives / POE + additives |
| Production Width | 2600mm / 3000mm (customizable) |
| Product Weight | 300¨C530 g/m? |
| Line Speed | ¡Ü20 m/min |
| Thickness Tolerance | TD ¡Ü3%, MD ¡Ü2% |
| Melt Pump Diameter | ?600 mm |
| Surface Treatment | Matte / Textured / Sandblasted |
| Installed Capacity | Approx. 550 kW |
| Operating Capacity | Approx. 300 kW |
| Cooling Water | 7¨C20¡ãC / 4¨C6 bar |
| Air Supply | ¡Ý7 bar |

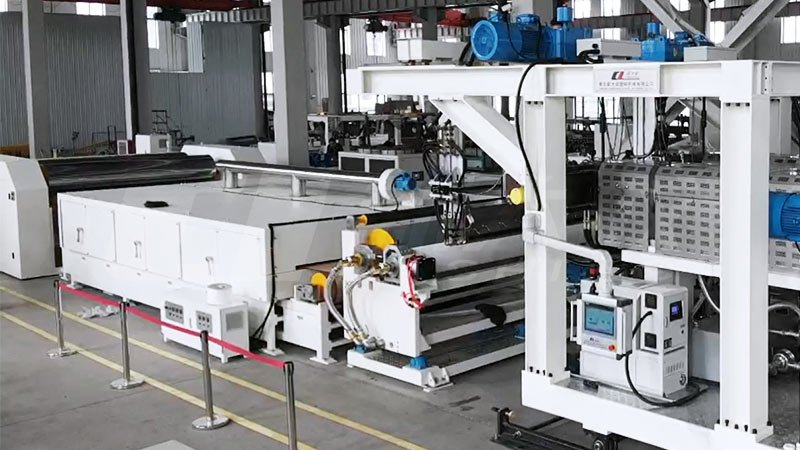

Intelligent Control System

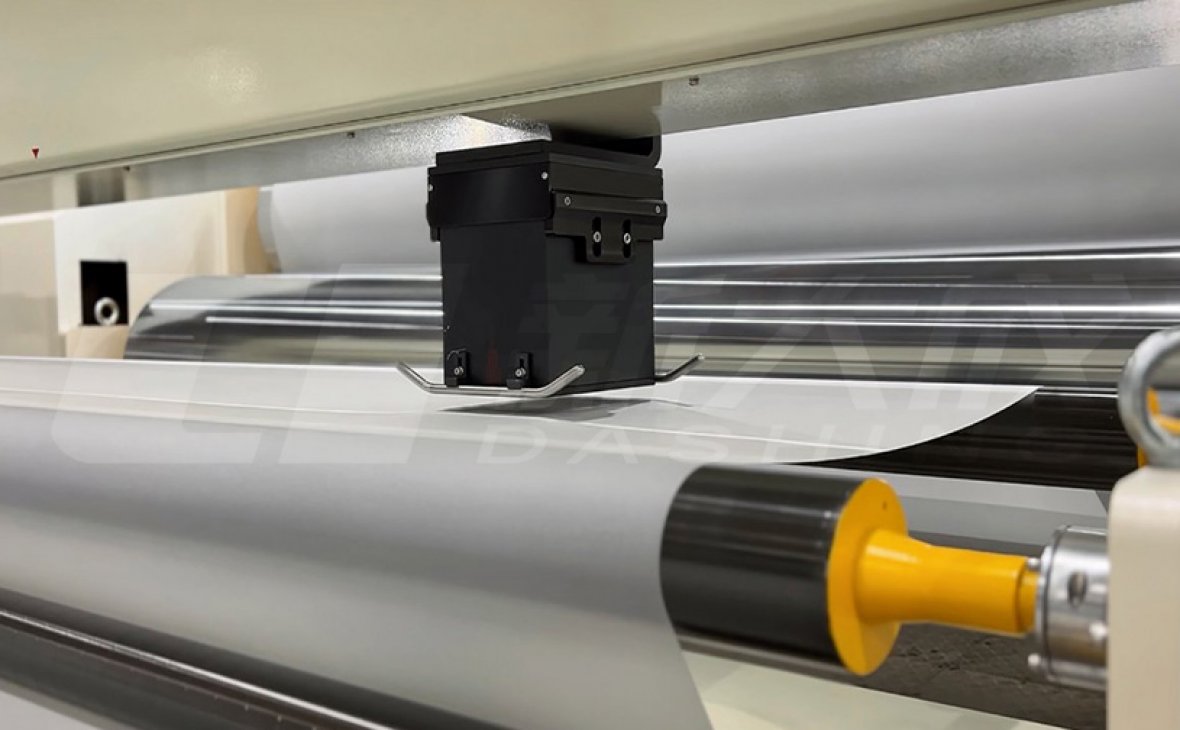

The integrated online thickness measurement and automatic gauge control system ensures precise film thickness and stable product quality. Combined with defect detection technology, the system can generate real-time production data for fast analysis and process optimization.
The advanced intelligent control system improves production stability, reduces material waste, and enhances overall manufacturing efficiency.
Advanced Annealing & Recycling Technology
The far-infrared annealing system provides accurate temperature control and improved film flatness while reducing energy consumption. Stainless steel insulation structure ensures efficient heat preservation and stable production conditions.
The edge trim online recycling system effectively reduces material waste and lowers production costs.
Flexible Customized Extrusion Solutions

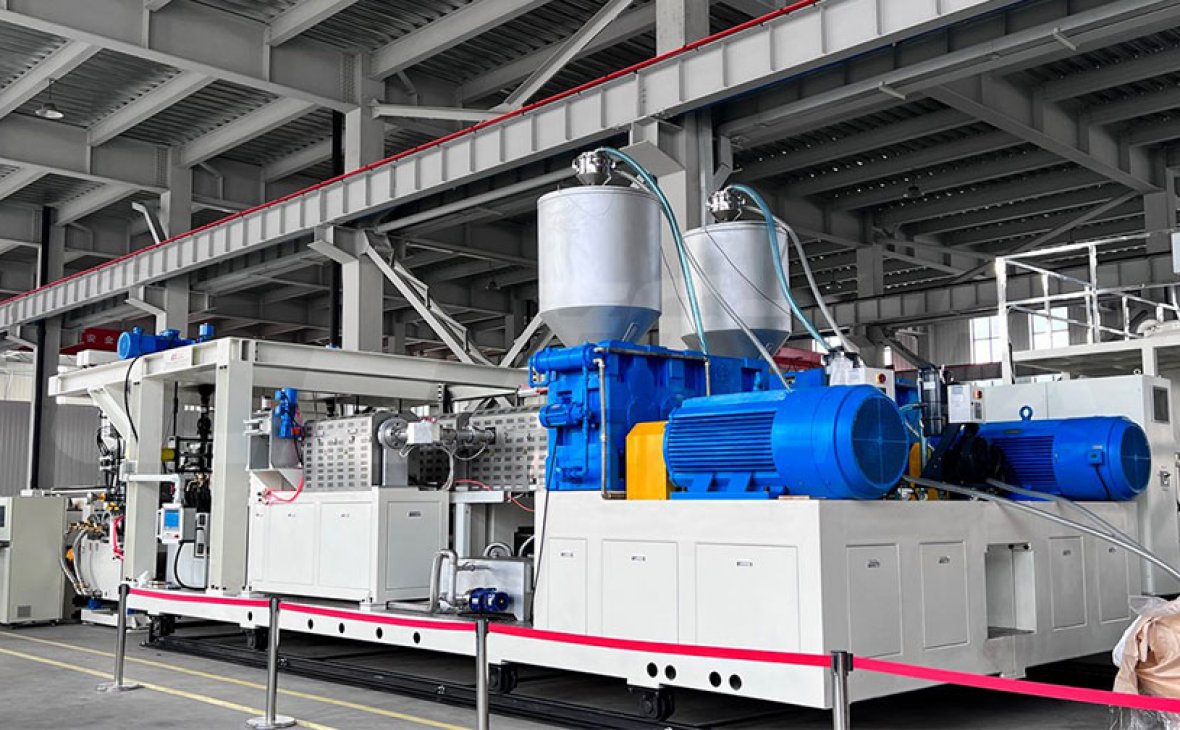

According to customer production requirements, the line can be configured with:
Single-screw extruder
Multi-screw extrusion system
Parallel twin-screw extruder
Two-stage extrusion system

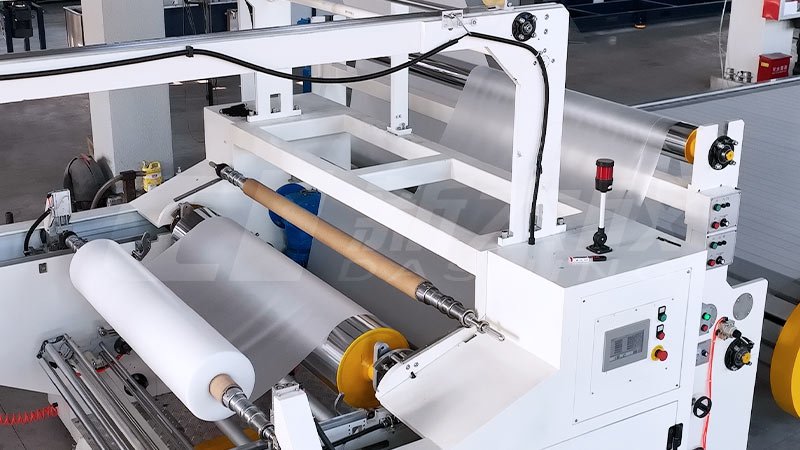

Multiple online slitting solutions are also available for different photovoltaic encapsulation film production demands.
Applications

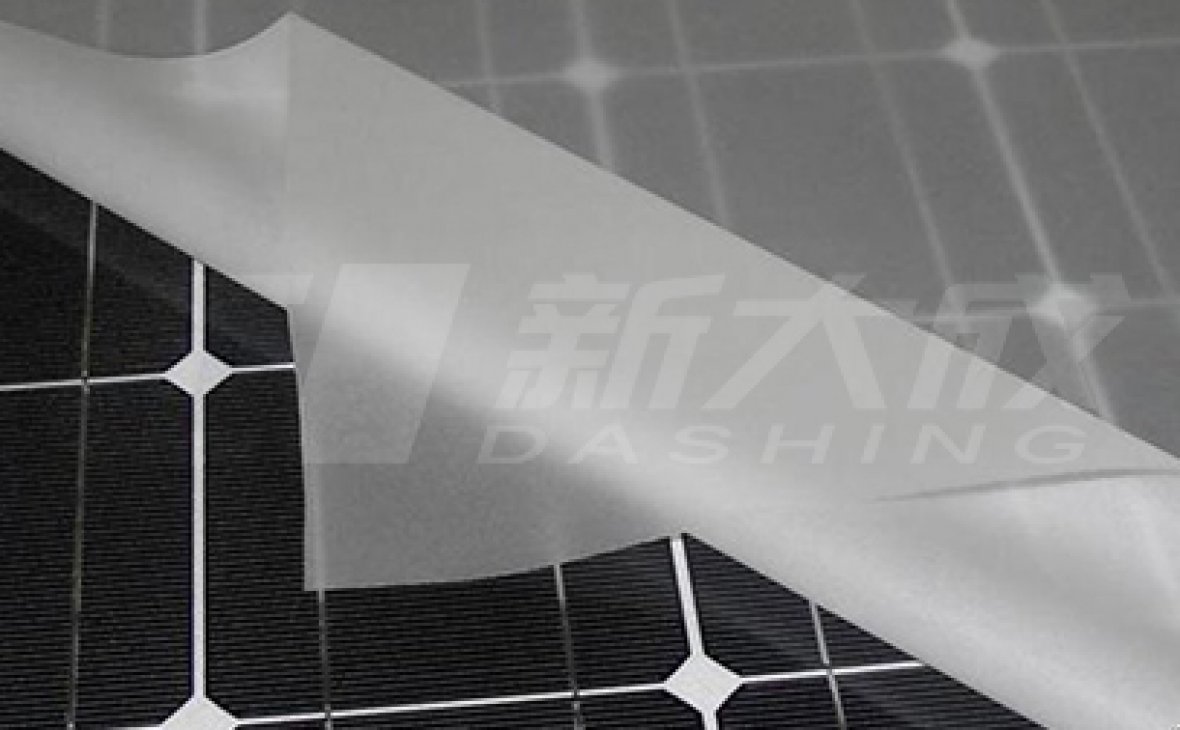

EVA solar encapsulation film
POE solar film
EPE photovoltaic film
Co-extruded solar encapsulation film
Solar panel module manufacturing
Photovoltaic laminated glass
Architectural safety glass
Functional optical film production
Turnkey Project Support
We provide complete turnkey solutions for EVA/POE solar film manufacturing projects, including plant layout design, utility engineering, installation, commissioning, technical training, and production support.
Our mature photovoltaic film extrusion technology helps customers achieve stable production, low shrinkage, minimal weight deviation, and high-quality solar encapsulation film manufacturing.
